Description

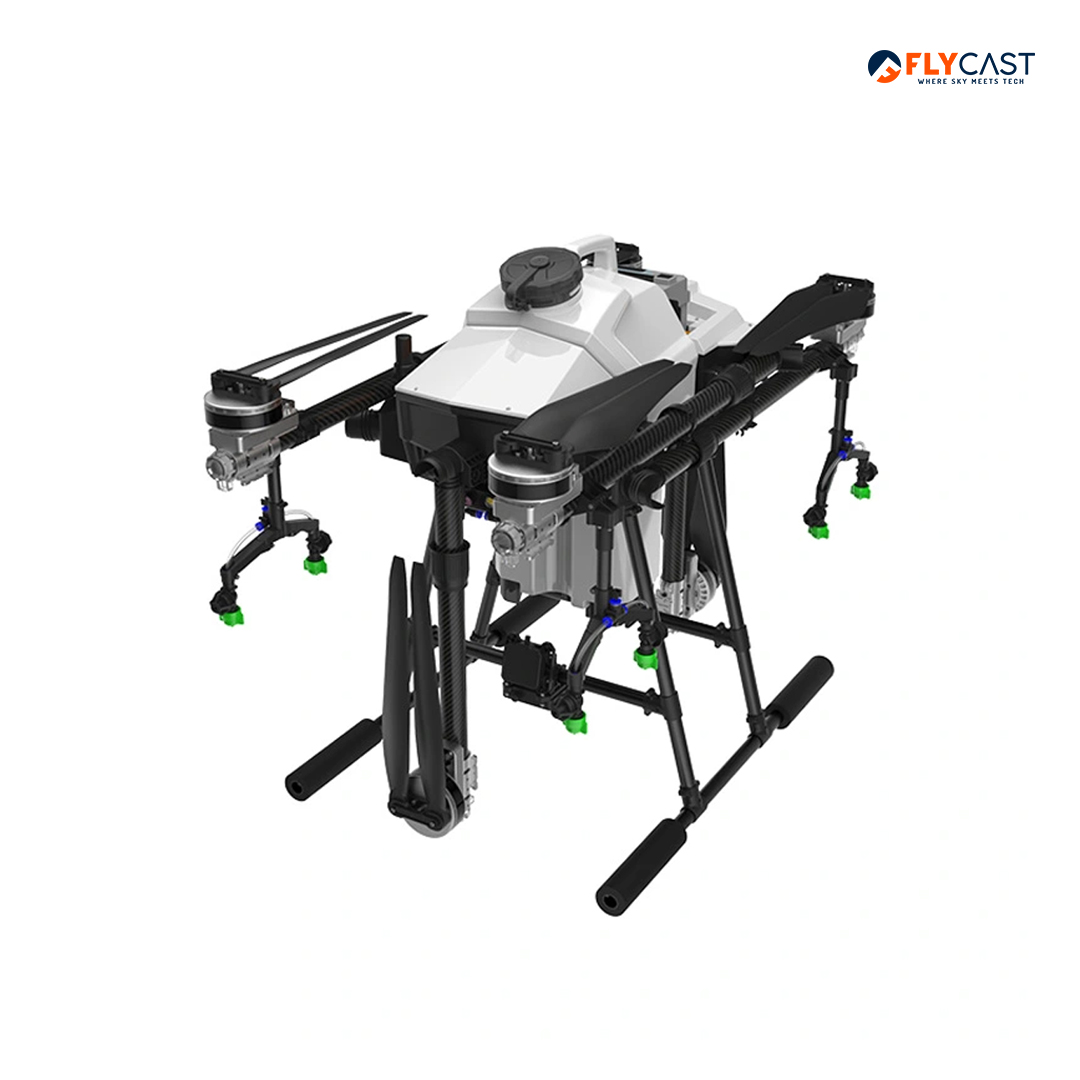

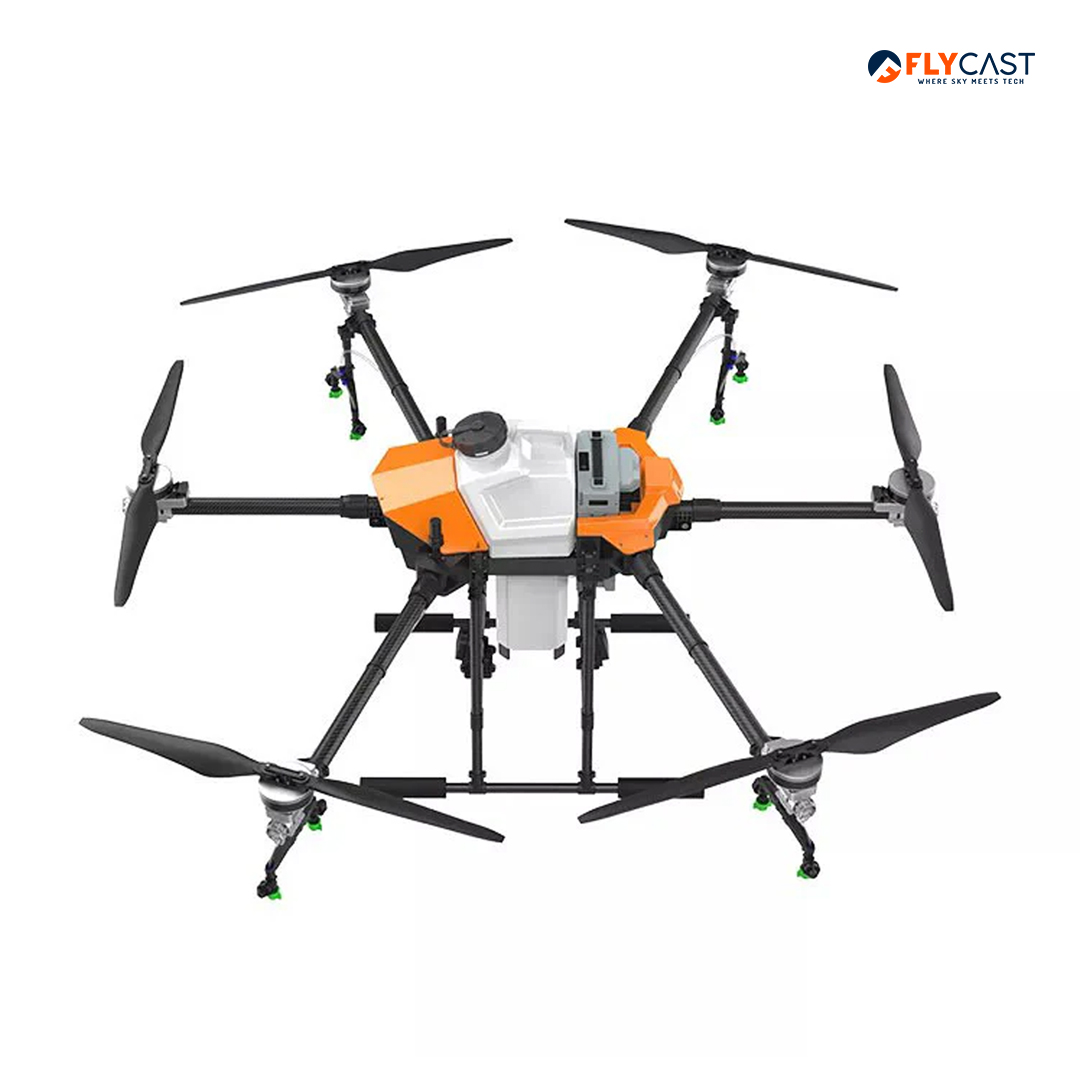

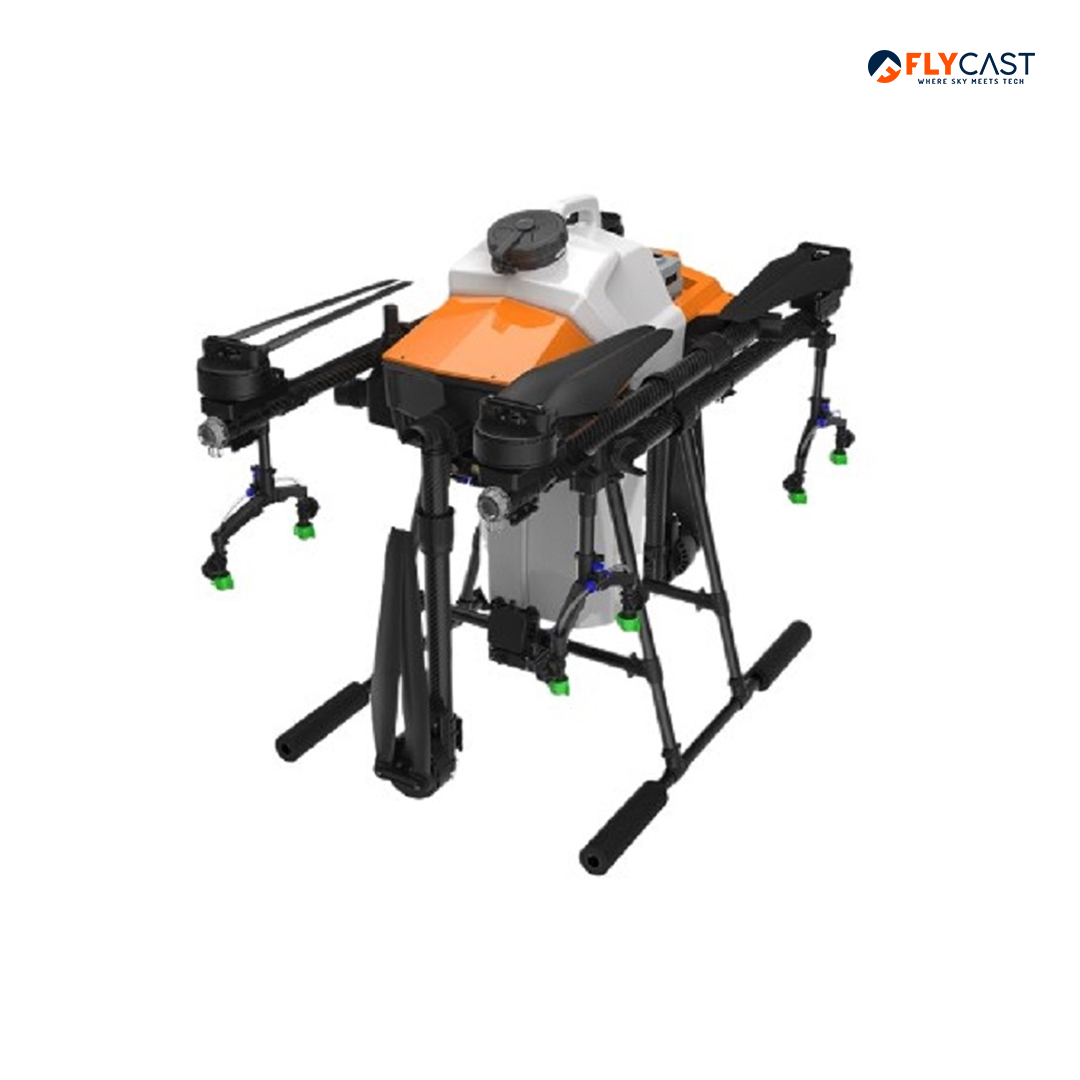

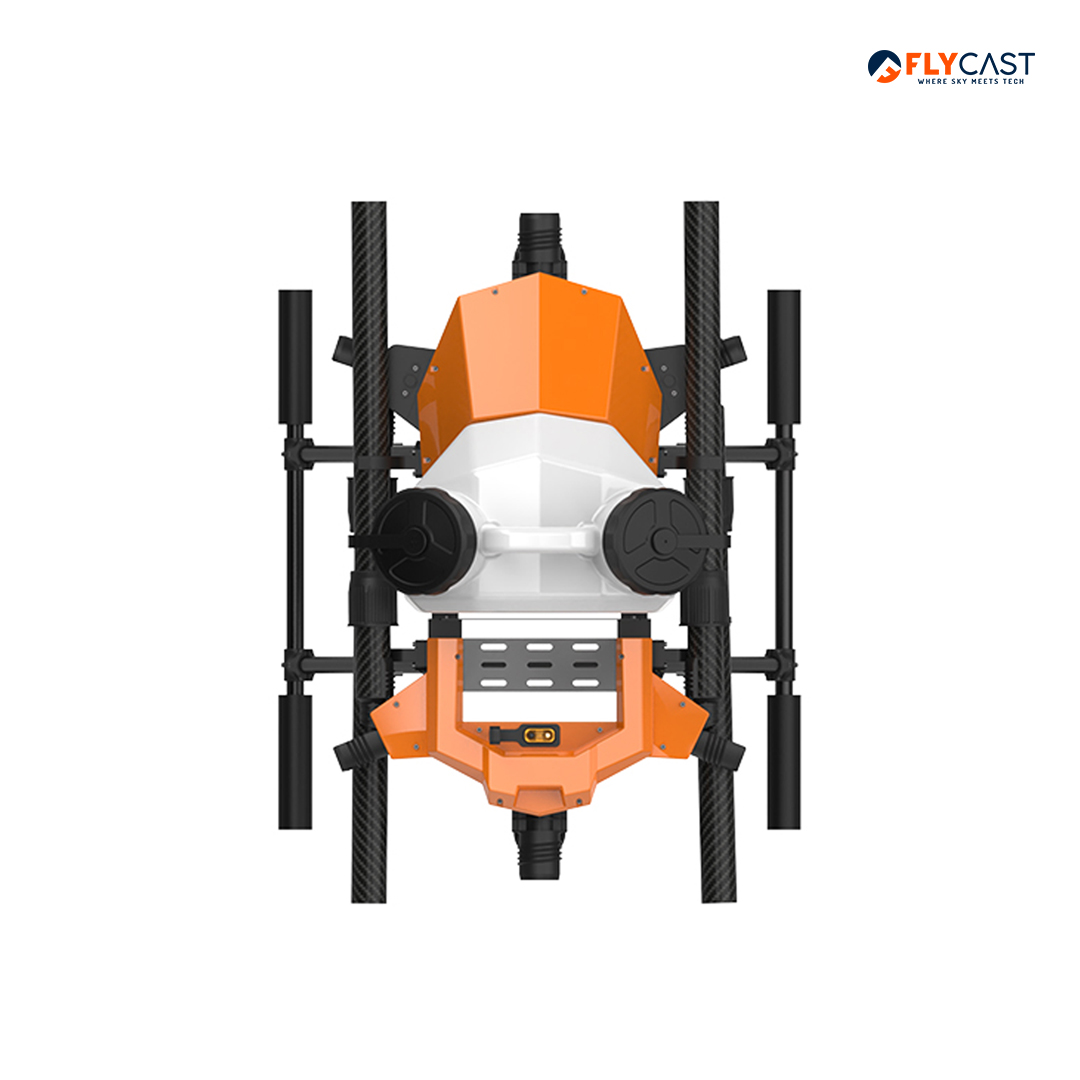

EFT G620 20L agricultural drone frame
The EFT G620 is a six-axis agricultural drone frame designed around a 20-litre spraying tank. It is an option for farmers, spraying-service businesses and UAV builders planning an agricultural spraying system. Confirm the supplied configuration and included components before ordering: a frame specification alone does not describe a complete, ready-to-fly drone.

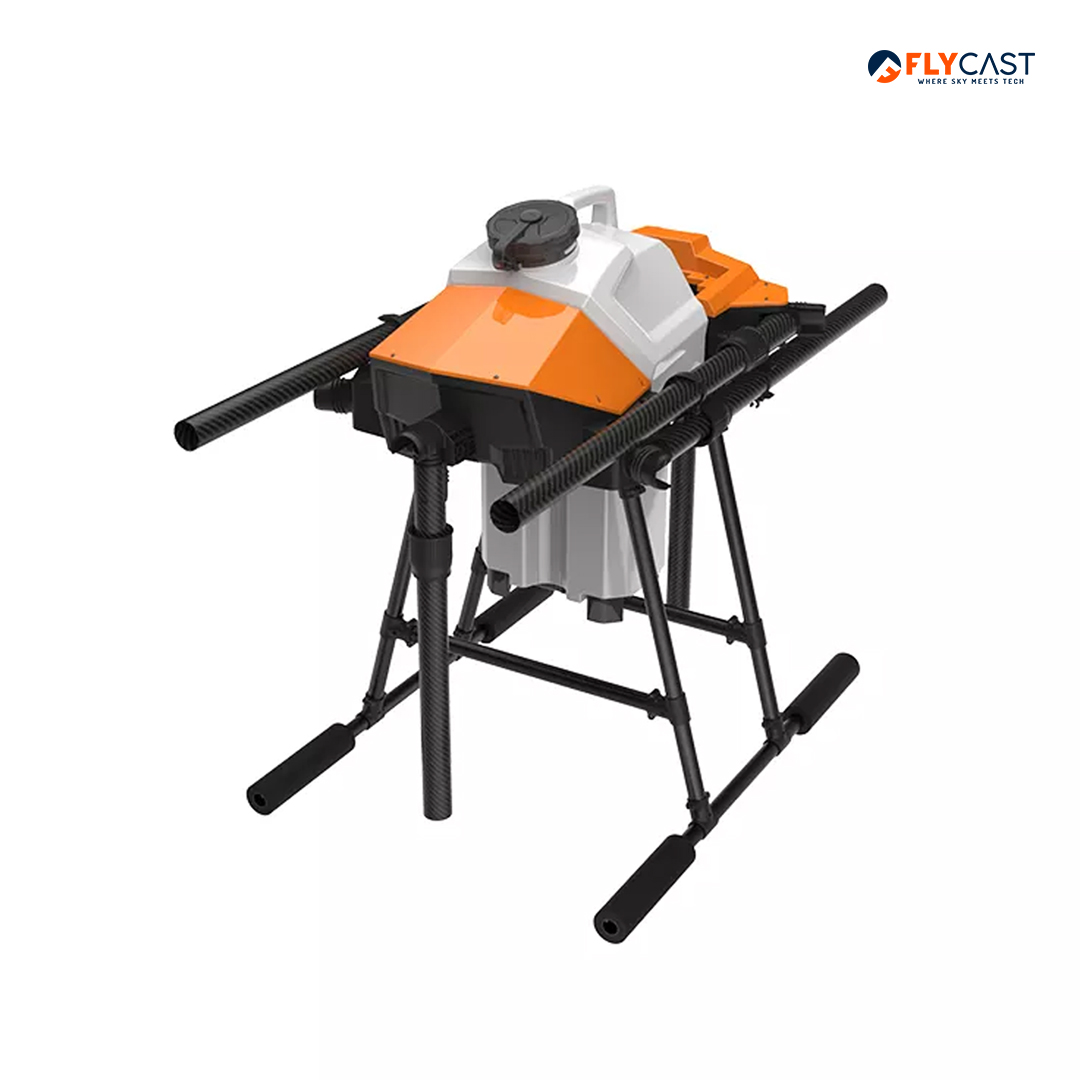

Folding arms and a modular structure
Carbon-fibre arms and an ABS body form the frame structure. The folding-arm design helps with transport and storage, while replaceable arms, landing gear, motor mounts and tank brackets support servicing. Check replacement-part availability and the assembly requirements for your selected configuration.
Read our agricultural drone support guide for after-sales and servicing information.
Build the spraying system around your application
The platform supports a 20L tank configuration for pesticide and liquid-fertiliser spraying. Coverage and operating time depend on the complete build, spray setup, application rate, battery, load and field conditions. Confirm these requirements for your crop and operation before selecting a system.
For seed or granule spreading, discuss the required add-on module and its compatibility. Mapping and field-monitoring applications also require a suitable camera or sensing payload and the associated control and data workflow.

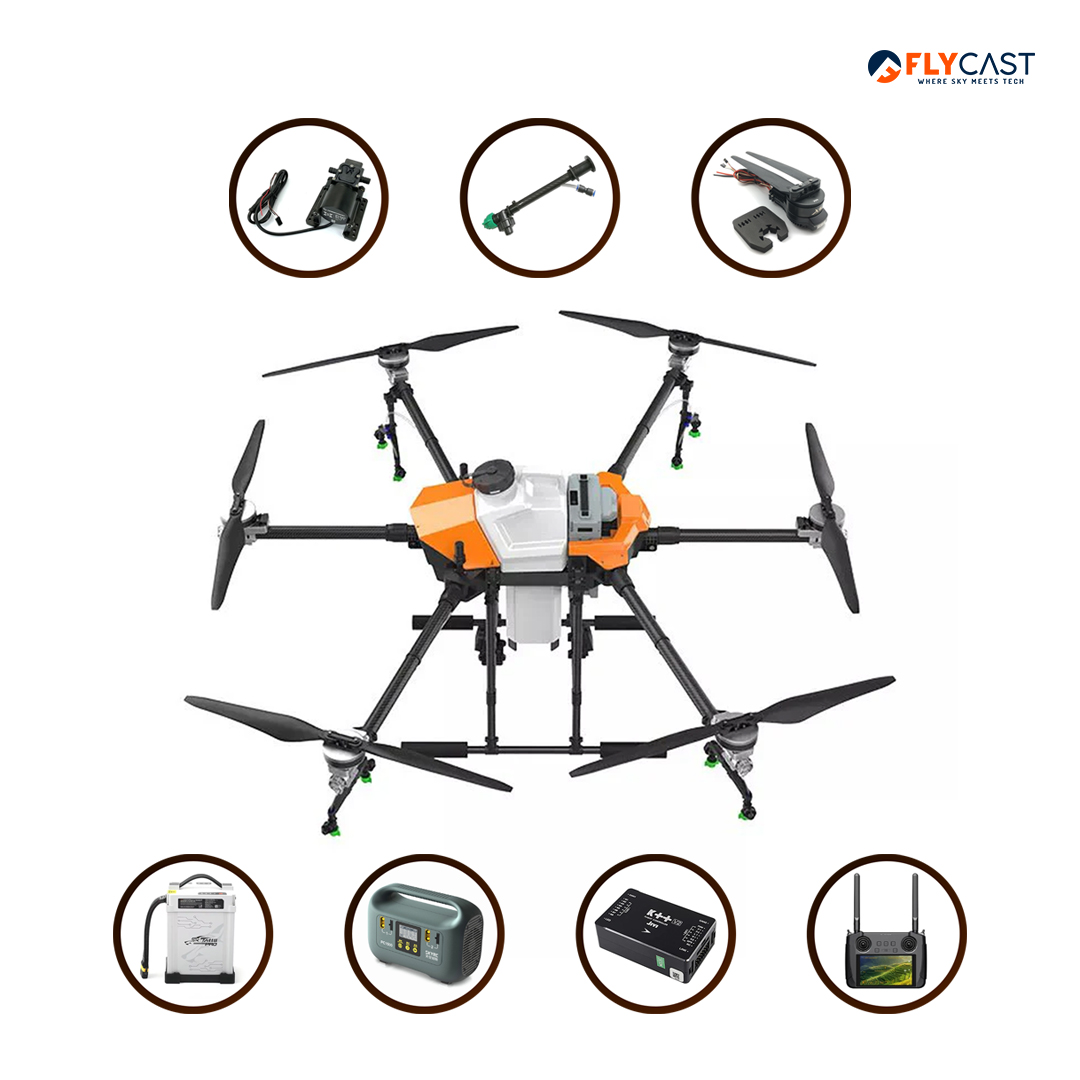

Component compatibility
Select motors, ESCs, propellers and batteries as a matched system. Pixhawk, A3 and other flight-controller configurations must be checked for mounting, wiring, firmware and interface compatibility. A six-axis layout alone does not guarantee endurance, wind resistance or flight stability; those depend on the completed aircraft and its setup.
Explore Faradic drone batteries and share your voltage, current, connector, weight and installation requirements with our team.
Technical specifications
| Specification | Details |
|---|---|
| Model | EFT G620 |
| Product | 20L six-axis agricultural drone frame |
| Tank compatibility | 20 litres; confirm whether the tank and spray system are included in the selected configuration. |
| Structure | Carbon-fibre arms and ABS body |
| Arm design | Folding arms; confirm quick-release components in the supplied kit. |
| Frame weight | Modular frame; request the weight of the selected configuration. |
| Flight controllers | Pixhawk, A3 and other systems subject to integration and compatibility checks. |
| Applications | Agricultural spraying; liquid fertiliser application; mapping and field monitoring with suitable payloads; seed spreading with compatible add-on equipment. |
| Serviceable components | Arms, landing gear, motor mounts and tank brackets; confirm replacement-part availability. |
| Operating conditions | Confirm heat, dust, wind and vibration limits for the complete aircraft before field deployment. |
| Intended buyers | Farmers, spraying-service businesses, drone builders and agri-tech companies |
| Manufacturer part number | EFT-G620-20L |
| SKU | EFT20L-FRAME-G620 |
Request a configuration and quotation
Tell us your crop, field size, spraying requirements and whether you need a frame kit or a configured aircraft. We can discuss the component list, battery options, transport needs and support scope before quoting.
